When it comes to business communication services, Exacta Graphics has got you covered. We provide virtually any product or service imaginable to communicate with your clients, employees, stockholders, or vendors.

Please see below to view our equipment and capabilities

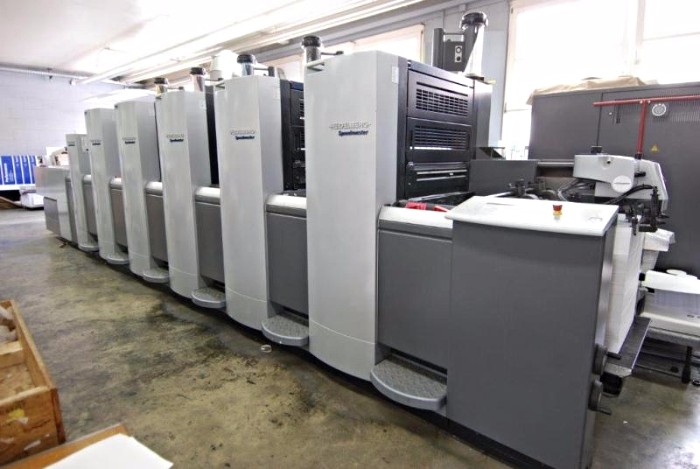

Heidelberg CD 74-6+L-F / VARIO / CP2000

Capabilities:

6 Color + Aqueous

Max. Sheet Size: 23 5/8 x 29"

Max Image Size: 23 x 29"

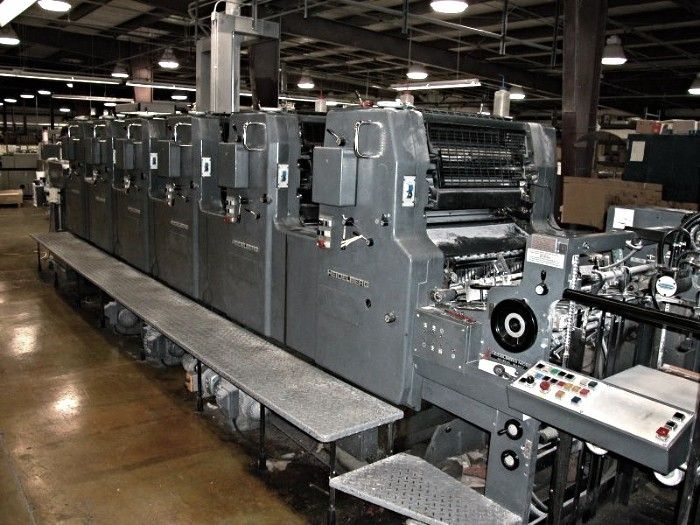

Heidelberg SM-52-5+L / ALCOLOR

Capabilities:

5 Color + Aqueous

Max. Sheet Size: 14 1/2 x 20 1/2"

Max. Image Size: 14 1/8 x 20 1/4"

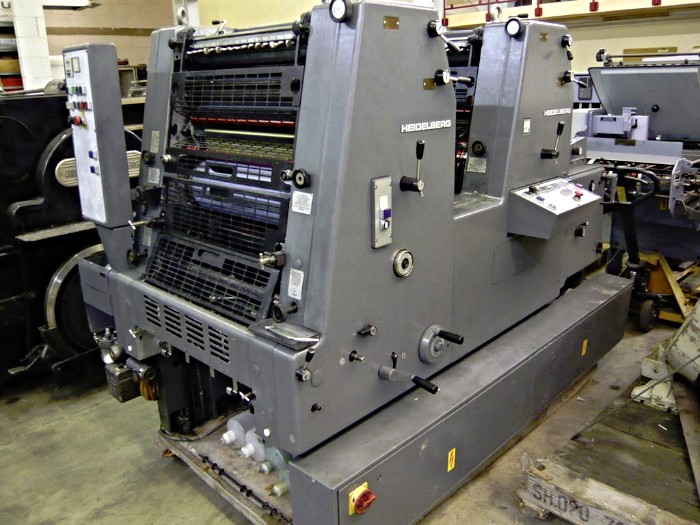

Heidelberg GTO-ZP / ALCOLOR

Capabilities:

2 Color Perfector

Max. Sheet Size: 14 3/16 x 20 1/2"

Max. Image Size: 13 3/8 x 19 7/8"


Matrix 106 CS Die Cutter


Heidelberg Easymatrix 106-CS Die Cutter

With an output of 7,700 sheets per hour and short set-up times, the Easymatrix 106 C/CS stands for productivity and cost-effectiveness up to the 106 format. It processes materials from 90 to 2,000 g/m². Even corrugated board up to 4 mm thickness can be processed.

Capabilities: Die Cut, Score, Perf, Blanking/Knock Outs

Minimum Sheet Size: 14.2” x 41.73”

Maximum Sheet Size: 29.84” x 41.73”

Stock Capabilities: 0.004” up to 60 Point, Corrugated Board up to 160 Point

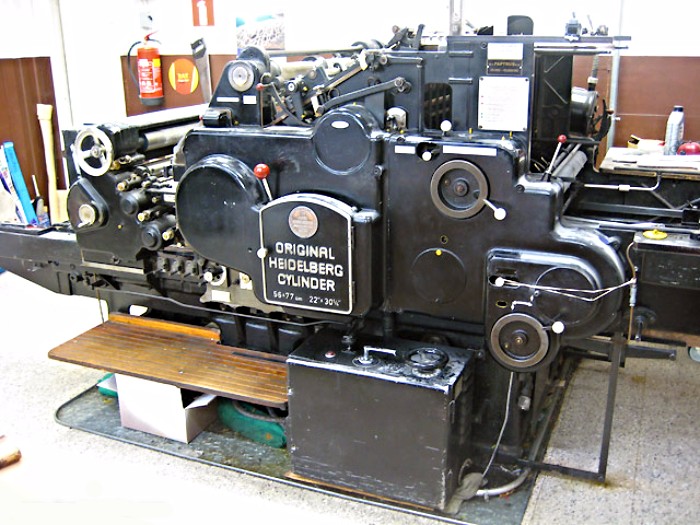

Original Heidelberg Cylinder Press

Capabilities:

Die-Cut, Score, Perf

Max. Sheet Size: 21 1/4 x 28 3/8"

Max. Image Size: 21 x 27 3/16"

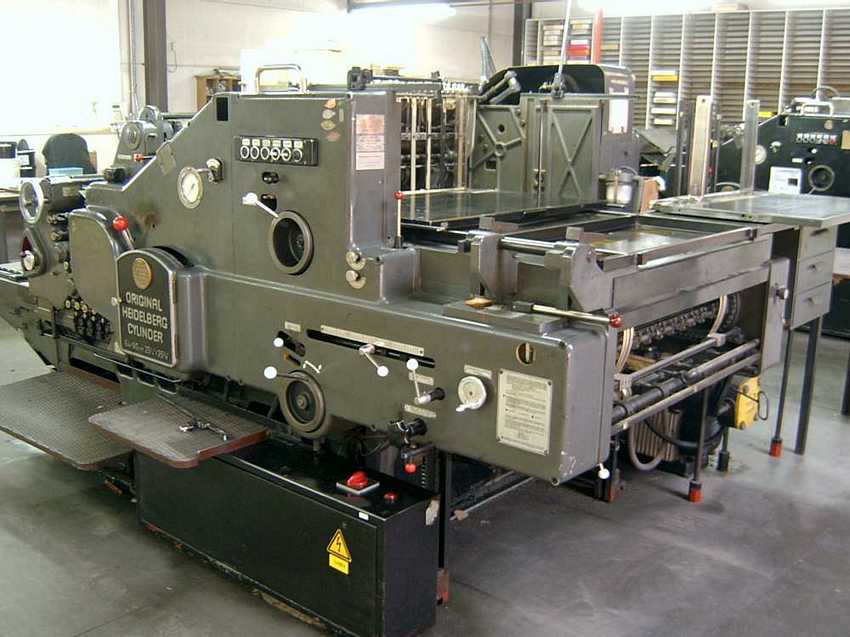

Heidelberg SBD Cylinder

Capabilities:

Die-Cut, Score, Perf

Max. Sheet Size: 25 1/4 x 35 3/8"

Max. Image Size: 24 3/8 x 33 1/2"

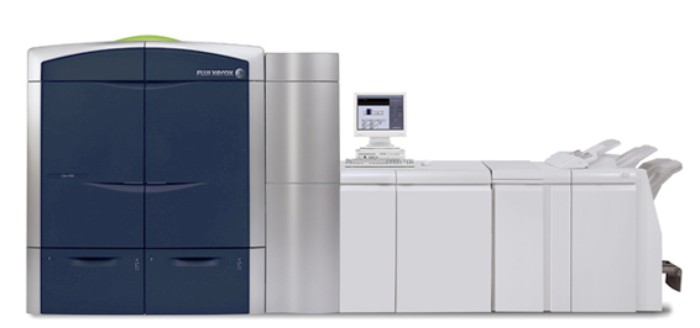

Xerox Iridesse XRX-IR 120

Capabilities:

Spot Clear Coat, Metallic Silver, Square Spine Finishing

Max. Sheet Size: 13" x 19.2"


Diana Easy 115 Folder Gluer

Folding carton gluing made easy.

The Diana Easy offers very fast and comfortable changeover processes, an operator-friendly design across the entire machine, and the highest quality standards. With speeds of up to 300 m/min, the Diana Easy is perfectly equipped for a wide range of applications. The machine is available in the format range of 85 cm and 115 cm (33.46 and 45.28 in) and therefore can easily handle products with a maximum product length of 600 mm. Cartons of 200-600 g/m² and up and an E-flutes of corrugated material can also be easily processed.

An intelligent setup system based on a PLC control concept is optionally available. This simplifies formerly labor-intensive and time-consuming setup processes. The "SmartSet" function saves all settings for repeat jobs, which shortens the changeover process and ensures the highest levels of productivity. The "DigiSet” function helps the operator set up a job for the first time by providing advice on where to position the carriers in each module.

Capabilities: State of the art straightline folding carton, inline pot/nozzle glueing Pocket Folders, all common carton styles, custom boxes

Minimum Straightline Carton: 2.95” x 2.17” Maximum Straightline Carton: 45.28” x 23.62” Minimum Lock Bottom Carton: 5.75” x 2.17” Maximum Lock Bottom Carton: 45.28” x 23.62” Minimum 4 Corner Box: 4.72” x 4.33” Maximum 4 Corner Box: 34.65” x 26.77” Minimum 6 Corner Bob: 9.84” x 5.12” Maximum 6 Corner Box: 45.28” x 24.80” Stock Capabilities Carton: 0.008” – 0.024” Stock Capabilities Corrugated: Up to E-Flute

Running Speed: Over 100,000 per hour Maximum (*Dependent upon box configuration)


Heidelberg Prinect Business Manager - ERP - Prinect Workflow

Heidelberg Prinect Business Manager - ERP

Printing reinvented.

Less complexity, higher profits.

“A printing press is made to print.” In practice, however, only 30 % of its potential is exploited on average*. One reason for this is that the areas upstream of the actual printing process are working at their capacity limit. The crucial factor: these areas account for 55 % of the throughput time of a print job*. The solution to this lies in intelligent machines that organize and process standardized printing processes autonomously. The prerequisite: the harmonious interaction of six key factors.

Integrate customers.
Web portals simplify communication and automate workflows. The result: more efficiency, more customer service, more turnover.

Reduce touchpoints.
Fewer touchpoints and more automation unleash unrealized potential. Throughput increases.

Increase productivity and operating time.
Efficient planning and automatic data availability increase the operating time and productivity. Profits increase.

Reduce paper waste and warehousing.
Optimal materials ensure reproducible production. The paper waste decreases.

Optimize consistency and reproducibility.
Standardization provides certainty and consistency. Production is more predictable.

Business Intelligence.
Business Intelligence delivers sound information. For decision-making based on real facts.

Prinect Production

4 factors that will change
your perspective on workflows.

Successful together.

With Prinect Production, you not only save time and money. You also have the certainty
that your long-term success is our prime focus. With Prinect Production, you no longer have
to purchase individual software modules. You obtain a smart production workflow for the whole
production process, billed on the basis of the produced volume.

Prinect Business

Smart processes.
Higher profits.

Prinect Business integrates your business processes, your production, your analyses, and your customers into the smart print shop workflow. By automating your commercial processes, you gain new freedom, maximize your margins and fulfill your customers’ wishes.

All combined results in “Just in Time” accurate Push to Stop print production within Exacta Graphics, Inc. With a well-orchestrated and harmonious tempo which allows “Best in Class” production at Exacta Graphics, Inc.
